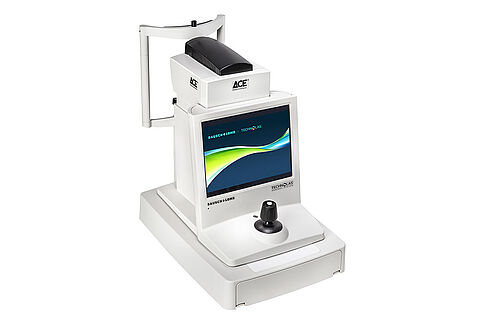

ACE Diagnostic Platform

Diagnostic confidence for refractive surgery

Accuracy: based on OCT technology

Consistency: fully developed, engineered and produced by experts with more than 20 years of experience in developing eye care devices

Efficiency: speed of acquisition of diagnostic measurements*

  • ACE® is a diagnostic technology that utilizes the power of high-resolution swept-source OCT imaging to provide the key corneal measurements.
  • Assess each patient’s corneal topography and tomography, including curvature and elevation maps of the anterior and posterior surfaces.
  • Display up to 6 maps simultaneously, compare OD and OS, or perform an analysis over time.
  • Streamline data transfer between ACE® and TECHNOLAS® TENEO™ 317 Model 2 provides data supporting PROSCAN treatments with static cyclotorsion compensation based on the iris data.

Key Functions

  • Corneal topography
  • Corneal tomography
  • Pachymetry
  • Total corneal power
  • Corneal wavefront analysis
  • Differential maps
  • Progression analysis
  • Data transfer with TECHNOLAS® TENEO™ 317 Model 2



* Compared to non-connected systems

Indications & approvals may vary by country. Please contact your local representative for further information.

PRODUCT INFORMATION

  • ACE® exports the following information in the .ote-files to the database server: Topography data, Pachymetry data, K-values, Q-values, Iris data
  • Dimensions: 472 x 317 x 496 mm
  • Weight: 18 kg
  • Measurement range: Pupil diameter: no limitations; Measurable curvature of cornea: min. 6.5 – 9.5 mm
  • OCT Images:

    • A-scan Rate: 50000 Hz
    • Image size (in air): (11±1) mm axially x 9 mm laterally
    • Resolution (in tissue): < 10 μm axially x 45 μm laterally
    • Scan pattern: Radial scan
    • Number of B-scans: 65
    • Number of A-scans per B-scan: 256
    • B-scan length: 8 mm
